Notes:
NEUTRINO voice support tool
Introduction & Download
NEUTRINO is basically the core of singing voice synthesizer engine, Without editor.
The main biggest weakness is there was no easy-to-read editor to play with the pitch and timing, that's make it inconvenience to use efficiently. However, there is a person who made an editor for NEUTRINO
Download: NEUTRINO voice support tool (latest version is v1.7.3.1)

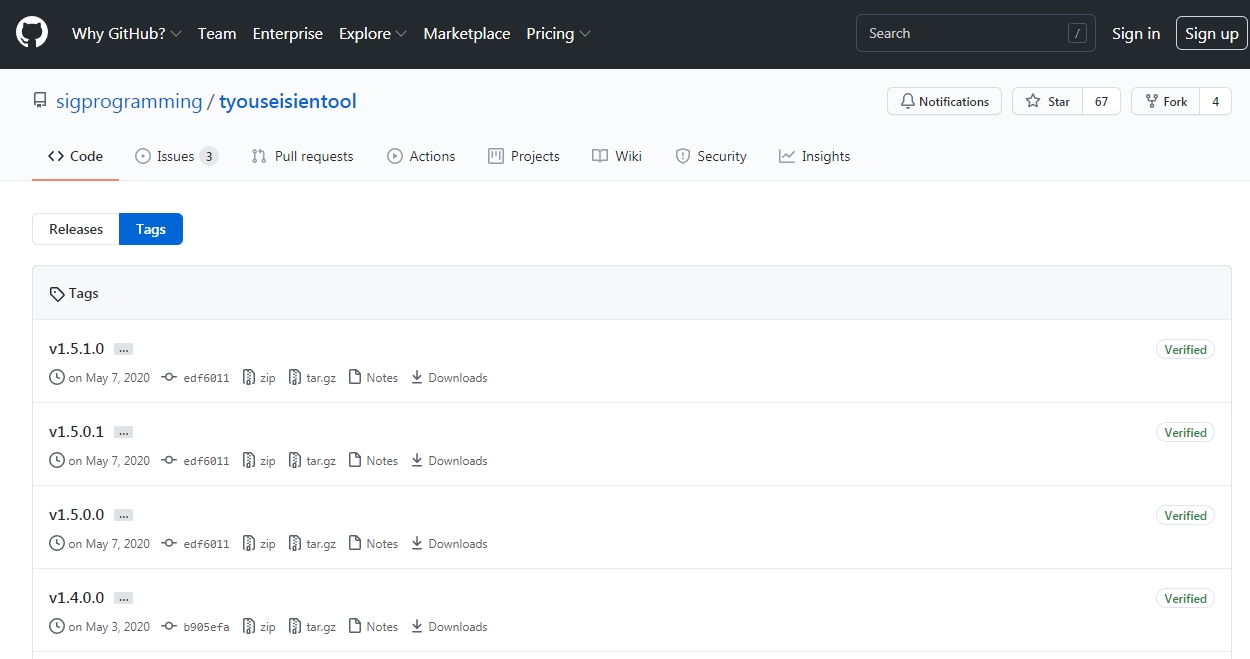

Click Tags and choose version to download

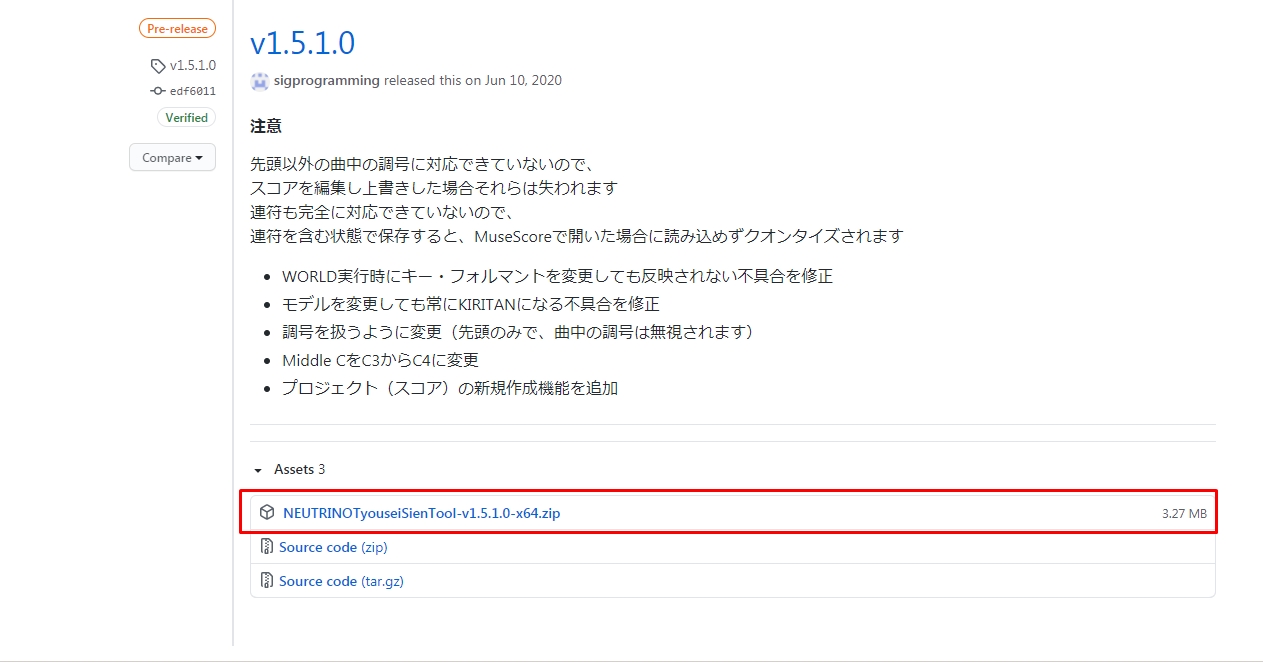

Process to download the compress file and decompress it in your machine.
Installation and initialization
After you download you need to setting your software first.

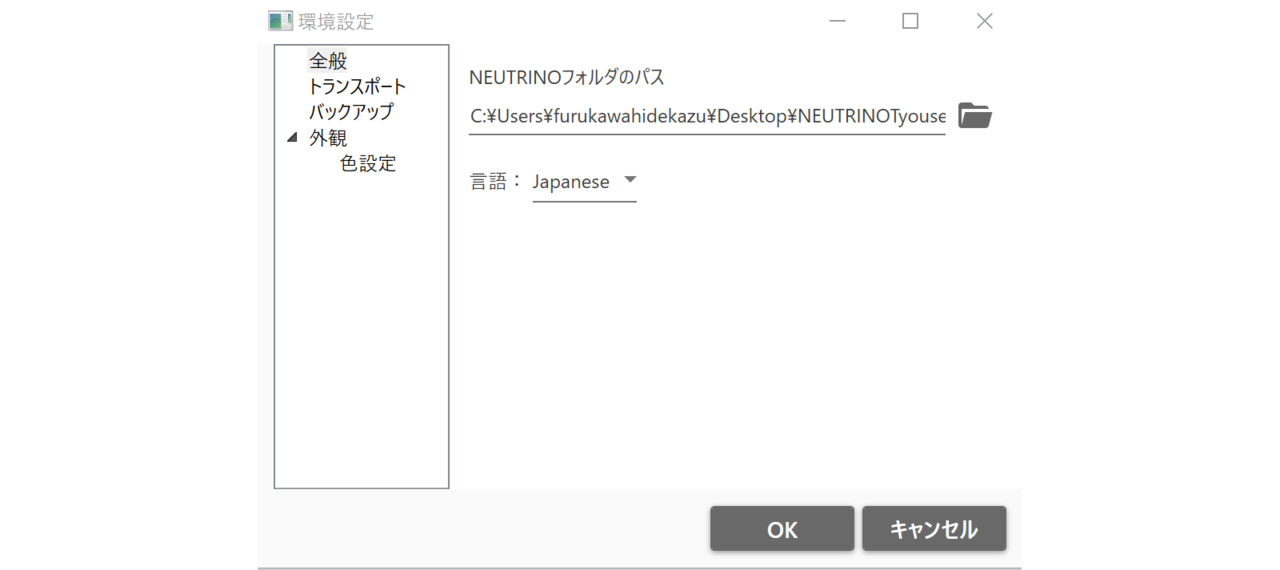

You can change your "NEUTRINO folder path" by the menu "File-> Preferences".
You can also change your language as well.
Set your project file path, Example: "/score/musicxml/sample1.musicxml" to a wav file of singing voice.
Read XML and synthesize
(1) Open "sample1.musicxml" from the menu "File-> Open".

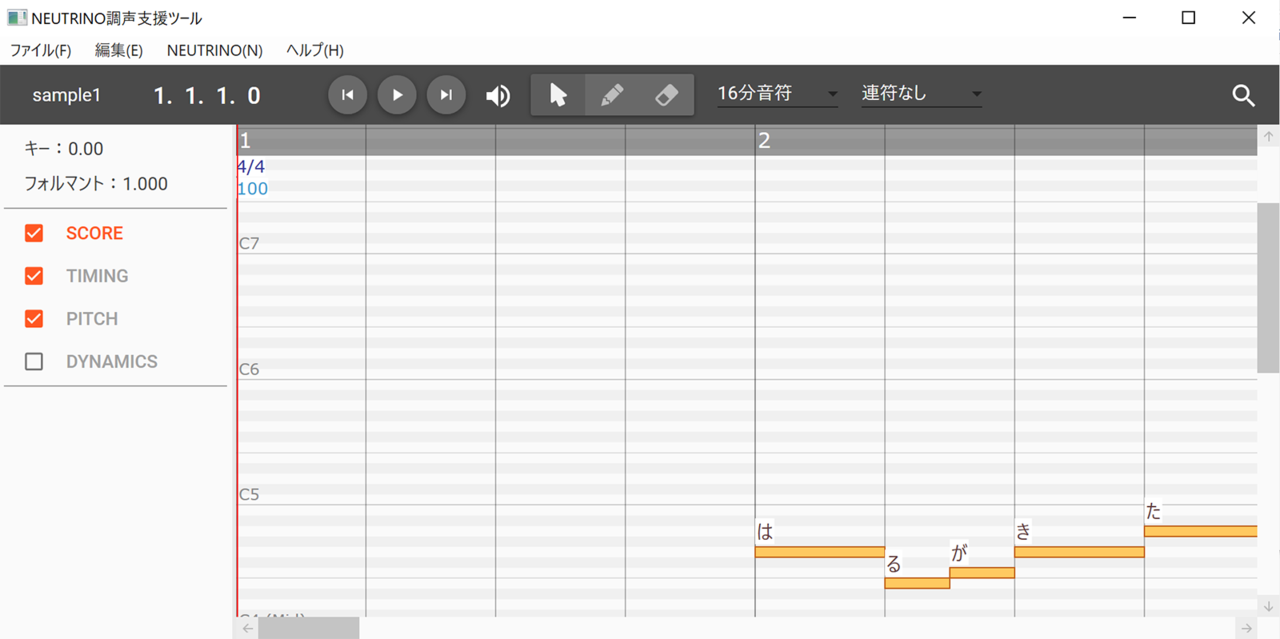

When loaded, it will look like this:

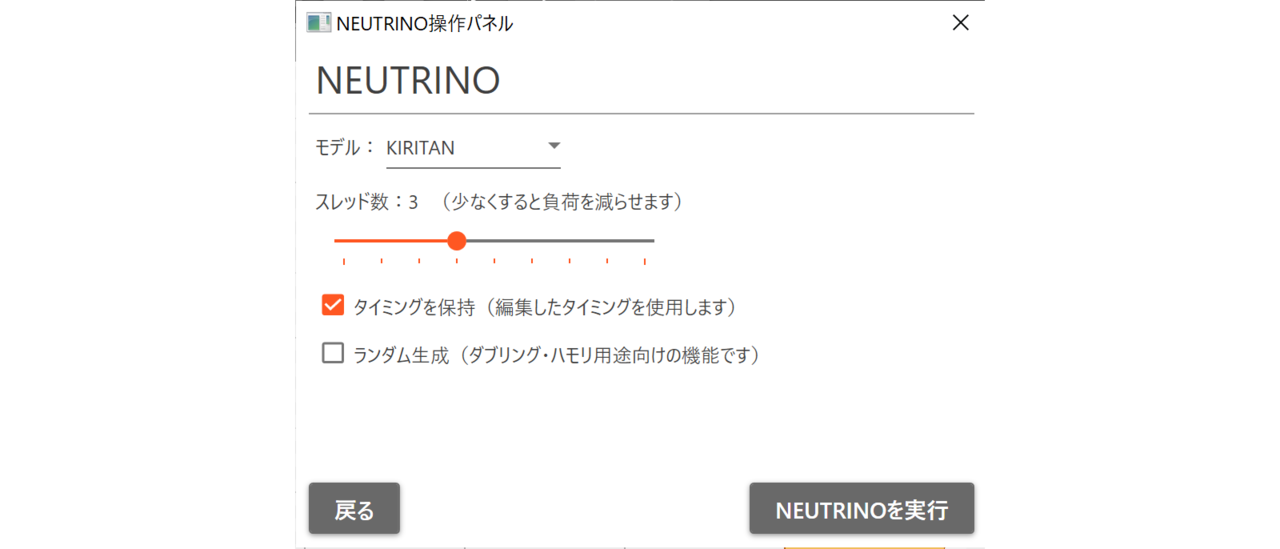

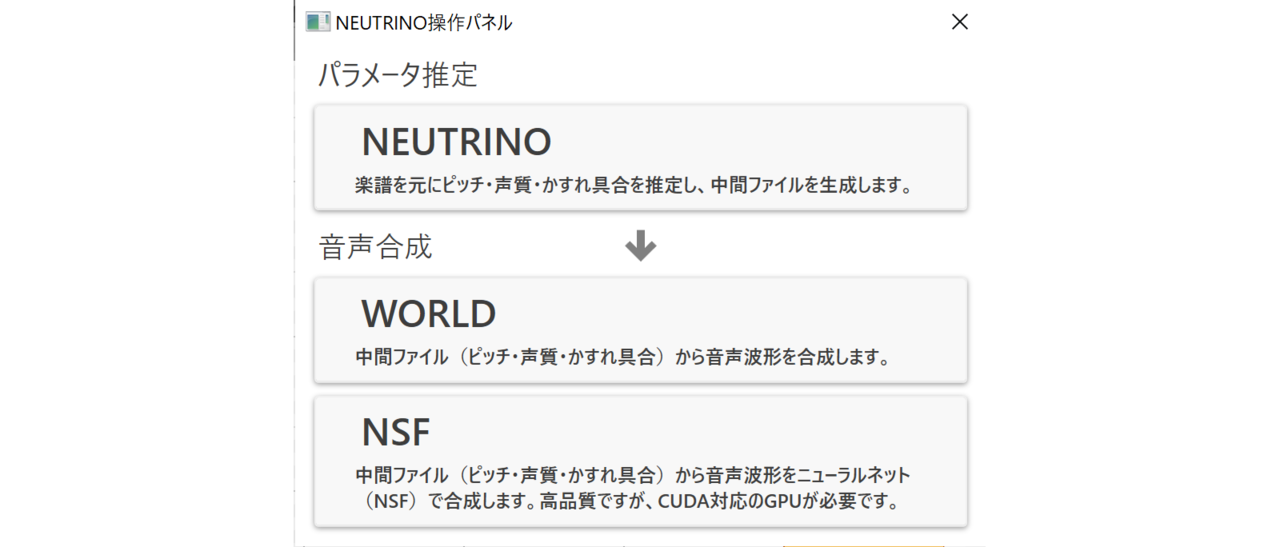

(2) Press the "NEUTRINO" button for parameter estimation in the menu "NEUTRINO → NEUTRINO operation panel".
Generate an intermediate file.
(3) Click the "Run NEUTRINO" button.
(4) Press the "WORLD" button for voice synthesis in the menu "NEUTRINO → NEUTRINO operation panel".
Generate a wav file of singing voice. To use "NSF", you need a GPU that supports CUDA.
(5) Click the "Run WORLD" button.
After that you should see "Sample1_syn.wav" is generated in the "output" folder.
Timing editing
Edit timing

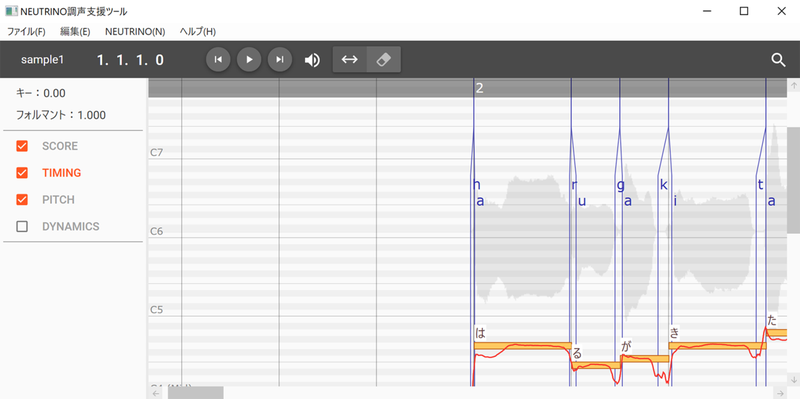

Select "TIMING" and edit the vertical line by dragging and dragging.
Re-synthesis after editing is possible only with "WORLD" and "NSF".
Pitch editing
Pitch editing

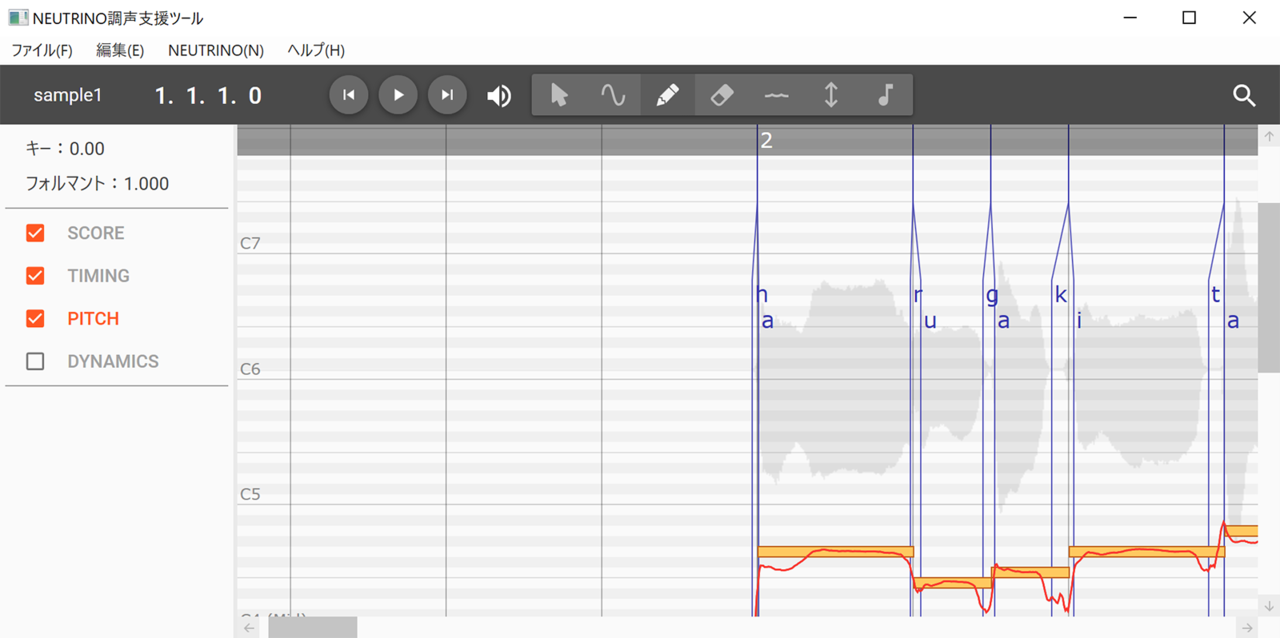

Select "PITCH", select "Draw" (pencil), and edit by drawing a pitch curve.
*Tools Box*
Select: Self explanatory
Vibrato: Make vibrato
Draw: Draw a pitch curve
Eraser: Undo
Smooth: Smooths the pitch curve
Rising and lowing: Move the pitch curve up and down
Kerokero: Make the pitch straight (Pitch snap)
Re-synthesis after editing is possible only with "WORLD" and "NSF".
Re-synthesis Returns
After done editing. Repeat process by Re-synthesis again.
- This guide focus on Windows OS
- This guide focus the NEUTRINO voice support tool itself
- Please read: How to use NEUTRINO (Offline & Online version) *FIRST*
NEUTRINO voice support tool
- Introduction & Download
- Installation and initialization
- Read XML and synthesize
- Timing editing
- Pitch editing
- Re-synthesis Returns
Introduction & Download
NEUTRINO is basically the core of singing voice synthesizer engine, Without editor.
The main biggest weakness is there was no easy-to-read editor to play with the pitch and timing, that's make it inconvenience to use efficiently. However, there is a person who made an editor for NEUTRINO
Download: NEUTRINO voice support tool (latest version is v1.7.3.1)
Click Tags and choose version to download
Process to download the compress file and decompress it in your machine.
Installation and initialization
After you download you need to setting your software first.
You can change your "NEUTRINO folder path" by the menu "File-> Preferences".
You can also change your language as well.
Set your project file path, Example: "/score/musicxml/sample1.musicxml" to a wav file of singing voice.
Read XML and synthesize
(1) Open "sample1.musicxml" from the menu "File-> Open".
When loaded, it will look like this:
(2) Press the "NEUTRINO" button for parameter estimation in the menu "NEUTRINO → NEUTRINO operation panel".
Generate an intermediate file.
(3) Click the "Run NEUTRINO" button.
(4) Press the "WORLD" button for voice synthesis in the menu "NEUTRINO → NEUTRINO operation panel".
Generate a wav file of singing voice. To use "NSF", you need a GPU that supports CUDA.
(5) Click the "Run WORLD" button.
After that you should see "Sample1_syn.wav" is generated in the "output" folder.
Timing editing
Edit timing
Select "TIMING" and edit the vertical line by dragging and dragging.
Re-synthesis after editing is possible only with "WORLD" and "NSF".
Pitch editing
Pitch editing
Select "PITCH", select "Draw" (pencil), and edit by drawing a pitch curve.
*Tools Box*
Select: Self explanatory
Vibrato: Make vibrato
Draw: Draw a pitch curve
Eraser: Undo
Smooth: Smooths the pitch curve
Rising and lowing: Move the pitch curve up and down
Kerokero: Make the pitch straight (Pitch snap)
Re-synthesis after editing is possible only with "WORLD" and "NSF".
Re-synthesis Returns
After done editing. Repeat process by Re-synthesis again.
